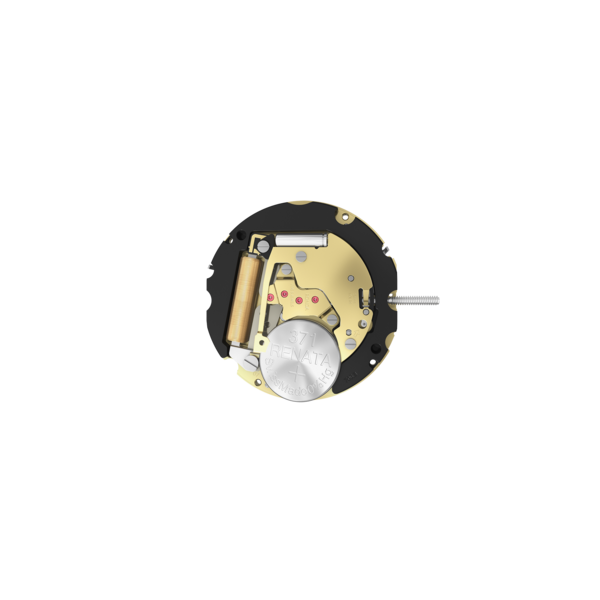

RONDA xtratech

706.3
3 mm
10½''', 23.30 mm
Multifunction
Moon phase
Month indicator
Day indicator
Date

Product Informations

Product Specifications

Type Analog quartz movement
Line xtratech
Caliber 706.3
Size 10½'''
Version Swiss Made 5 jewels / gold plated EOL
Version Swiss Parts 1 jewel / gold plated
Standard battery life 60 months
Standard hand fitting height 1

Functions

Multifunction
Moon phase
Day by hand
Month by hand
Date by hand
3 hands

Features

Repairable metal watch movement

Very long battery life

Power saving mechanism with pulled out stem: Reduction of consumption approximately 70%

Specifications

Technical Specifications

Diameter Total 23.90 mm
Case fitting 23.30 mm
Movement height 3.00 mm
Height over standard battery 3.25 mm
Movement rest 0.30 mm
Height over stem 1.50 mm
Length of stem travel 0.55 mm
Stem thread 0.90 mm
Useful torque second – typical 8 μNm
Useful torque minute – typical 400 μNm
Operating temperature 0 - 50 °C
Instantaneous rate -10/ +20 sec/month
Resistance to magnetic fields 18.8 Oe
Resistance against shock NIHS 91-10

Battery Specifications

Standard battery No. 371
Standard battery life 60 months
Battery voltage 1.5 V
Current consumption – typical 0.96 μA
Current consumption – maximum 1.35 μA

Technical documents

Watch production

Drawing Casing ring
Drawing Dial
Drawing Hand fitting
Drawing Stem
Casing information

User's manual

User's manual PDF with folding marks

Watch repairs

Technical instruction
No Interactive Version available

Movement holders

Movement holders

Movement holder for hand setting
H 706.1A
Movement holder for stem removal
H 70X.1T

Various info

Various info

Product Symbol

706.3
